About This Product

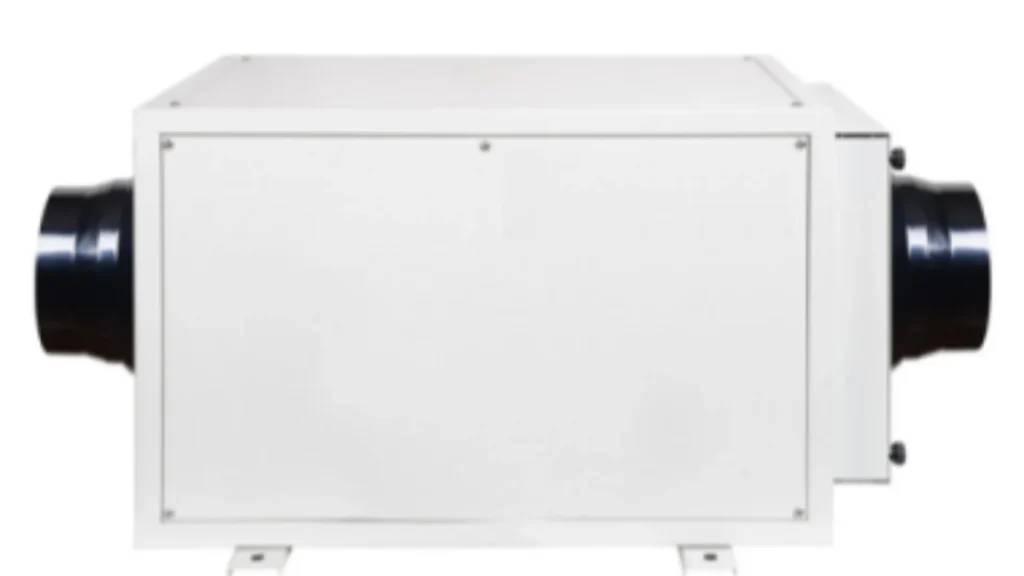

The ceiling concealed dehumidifier is designed to provide efficient and discreet humidity control in commercial, residential, and industrial environments. With a ceiling-mounted, space-saving design, this unit integrates seamlessly into the building’s HVAC system, keeping the indoor air dry and comfortable without impacting interior aesthetics.
Equipped with advanced humidity sensors and an intelligent control system, the dehumidifier operates automatically to maintain optimal humidity levels, ensuring a comfortable indoor environment while preventing mold, mildew, and other moisture-related issues.
|
Model |
YSDZ-26A |
YSDZ-36A |
|
Power Supply |
220V/50Hz |
220V/50Hz |
|
Dehumidification Capacity |
26L/D |
36L/D |
|
Test Conditions |
T=30℃，RH=80% |
T=30℃，RH=80% |
|
Maximum Power |
380W |
700W |
|
Maximum Current |
2A |
3A |
|
Total Airflow Capacity |
270-320m3/h |
480-560m3/h |
|
External Static Pressure |
50Pa |
50-70Pa |
|
Filtration System |
G4 Pre-filter |
G4 Pre-filter |
|
Operating Temperature Range |
5-38℃ |
5-38℃ |
|
Drainage System |
External Drainage via Flexible Hose Connection |
External Drainage via Flexible Hose Connection |
|
Noise Level |
35-38DB |
38-40DB |
|
Return Air Inlet |
Φ100mm |
Φ150mm |
|
Supply Air Outlet |
Φ100mm |
Φ150mm |
|
Unit Dimensions（LWH) |
650*330*255mm |
782*390*340mm |
|
Recommended Coverage Area |
20-40m2 |
40-60m2 |
|
FOB |
$ 479 |
$ 529 |
|
Model |
YSDZ-136A |
YSDZ-168A |
YSDZ-240A |
YSDZ-360A |
YSDZ-480A |
|
Power Supply |
220V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
|
Dehumidification Capacity |
136L/D |
168L/D |
240L/D |
360L/D |
480L/D |
|
Test Conditions |
T=30℃，RH=80% |
T=30℃，RH=80% |
T=30℃，RH=80% |
T=30℃，RH=80% |
T=30℃，RH=80% |
|
Maximum Power |
1100W |
2500W |
4000W |
7500W |
8700W |
|
Maximum Current |
5A |
5A |
6A |
11A |
13A |
|
Total Airflow Capacity |
1400m3/h |
2200m3/h |
2580m3/h |
4300m3/h |
5300m3/h |
|
External Static Pressure |
70Pa |
120Pa |
120Pa |
150Pa |
150Pa |
|
Filtration System |
G4 Pre-filter |
G4 Pre-filter |
G4 Pre-filter |
G4 Pre-filter |
G4 Pre-filter |
|
Operating Temperature Range |
5-38℃ |
5-38℃ |
5-38℃ |
5-38℃ |
5-38℃ |
|
Drainage System |
External Drainage via Flexible Hose Connection |
External Drainage via Flexible Hose Connection |
External Drainage via Flexible Hose Connection |
External Drainage via Flexible Hose Connection |
External Drainage via Flexible Hose Connection |
|
Noise Level |
45-47DB |
60DB |
60DB |
75DB |
75DB |
|
Return Air Inlet |
Φ200mm |
500*410mm |
500*410mm |
1060*560mm |
1060*480mm |
|
Supply Air Outlet |
Φ200mm |
500*410mm |
500*410mm |
1060*560mm |
1060*480mm |
|
Unit Dimensions（LWH) |
827*510*442mm |
990*597*554mm |
990*597*554mm |
1270*1100*730mm |
1100*1265*600mm |
|
Recommended Coverage Area |
120-150m2 |
200-250m2 |
250-350m2 |
400-500m2 |
500-600m2 |
|
FOB |
$ 869 |
$ 959 |
$1,029 |
$1,399 |
$1,699 |
Frequently Asked Questions
We collect a lot of FAQs from our real clients and please check out our FAQ page. Also, feel free to chat with us via LiveChat, phone call, email, or just simply drop us a line below:
30% to 50% for most indoor spaces. Industrial settings may require specific humidity levels. Our machine adjustable humidity range is 10%-90%.
Dehumidifiers are ideal for a wide range of industries, including pharmaceuticals, electronics, food processing, archives, data centers, museums, and industrial manufacturing environments.
A dehumidifier works by drawing in air, removing excess moisture using a cooling or desiccant system, and then releasing dry air back into the room. This process helps reduce humidity levels, preventing mold, mildew, and moisture damage.
We offer a full range of solutions, including refrigeration dehumidifiers, rotary wheel (desiccant) dehumidifiers, low-temperature models, high-temperature models, and customized climate control systems.
Yes, we support OEM & ODM services. We can customize capacity, voltage, appearance, and control systems based on your project requirements.
Our MOQ is flexible depending on the product type. Sample orders are available for testing before bulk purchase.
Standard models are typically delivered within 7–15 days. Customized orders may require additional time depending on specifications.
Our products can comply with international standards such as CE and other certifications required by your market.
Simply provide your application details (area, temperature, humidity level, etc.), and our team will recommend the most suitable solution.
