52*429*250mm
About This Product

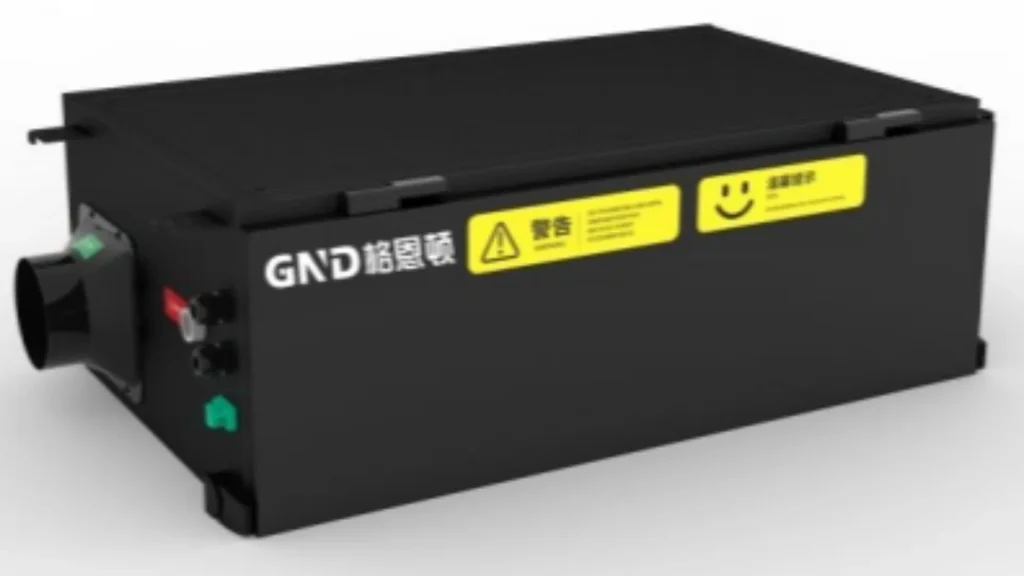

The Air-YS series central ducted dehumidification system is designed for whole-house and commercial humidity control through centralized air duct distribution. The system removes moisture from indoor air via a high-efficiency refrigeration cycle (compressor, evaporator, condenser) and delivers dry air evenly to each room through ductwork.
It ensures consistent humidity control across the entire space while improving indoor air quality and comfort. With concealed installation and centralized control, the system is ideal for modern buildings requiring high-performance and aesthetic integration.
Widely used in villas, hotels, basements, swimming pools, warehouses, and industrial environments, it provides a reliable solution for moisture control and air management.
|
M odel |
YSA-30L |
YSA-40L |
|
Power Supply |
220V/50Hz |
220V/50Hz |
|
Dehumidification Capacity |
30L/D |
40L/D |
|
Test Conditions |
T=30℃，RH=80% |
T=30℃，RH=80% |
|
Maximum Power |
510W |
580W |
|
Maximum Current |
2.3A |
2.6A |
|
Total Airflow Capacity |
280m3/h |
380m3/h |
|
External Static Pressure |
50Pa |
50Pa |
|
Noise Level |
35DB |
38DB |
|
Return Air Inlet |
Φ100mm |
Φ100mm |
|
Supply Air Outlet |
Φ100mm |
Φ100mm |
|
Filtration System |
G4 Pre-filter |
G4 Pre-filter |
|
Operating Temperature Range |
5-38℃ |
5-38℃ |
|
Ingress Protection Rating |
IPX4 |
IPX4 |
|
Drainage System |
Built-in Water Pump with Forced Drainage |
Built-in Water Pump with Forced Drainage |
|
Control System |
Intelligent Automatic Control System |
Intelligent Automatic Control System |
|
Compressor |
Panasonic Compressor |
Panasonic Compressor |
|
Refrigerant Type |
R134a |
R134a |
|
Unit Dimensions（LWH) |
8 |
852*429*250mm |
|
Recommended Coverage Area |
10-40m2 |
40-60m2 |
|
FOB |
$520 |
$688 |
Frequently Asked Questions
We collect a lot of FAQs from our real clients and please check out our FAQ page. Also, feel free to chat with us via LiveChat, phone call, email, or just simply drop us a line below:
30% to 50% for most indoor spaces. Industrial settings may require specific humidity levels. Our machine adjustable humidity range is 10%-90%.
Dehumidifiers are ideal for a wide range of industries, including pharmaceuticals, electronics, food processing, archives, data centers, museums, and industrial manufacturing environments.
A dehumidifier works by drawing in air, removing excess moisture using a cooling or desiccant system, and then releasing dry air back into the room. This process helps reduce humidity levels, preventing mold, mildew, and moisture damage.
We offer a full range of solutions, including refrigeration dehumidifiers, rotary wheel (desiccant) dehumidifiers, low-temperature models, high-temperature models, and customized climate control systems.
Yes, we support OEM & ODM services. We can customize capacity, voltage, appearance, and control systems based on your project requirements.
Our MOQ is flexible depending on the product type. Sample orders are available for testing before bulk purchase.
Standard models are typically delivered within 7–15 days. Customized orders may require additional time depending on specifications.
Our products can comply with international standards such as CE and other certifications required by your market.
Simply provide your application details (area, temperature, humidity level, etc.), and our team will recommend the most suitable solution.
