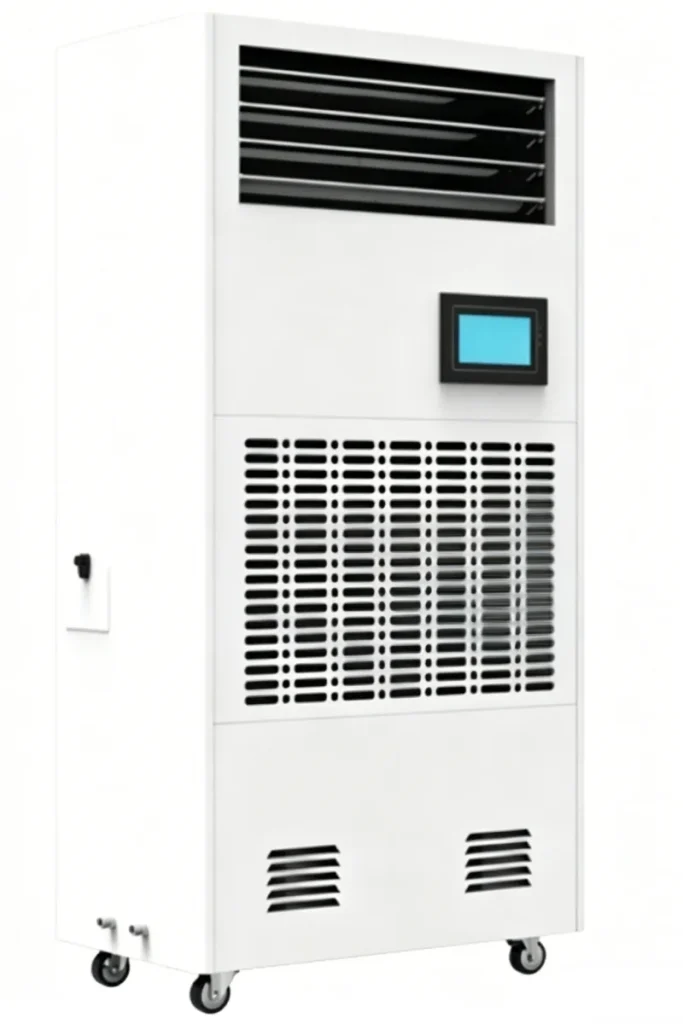

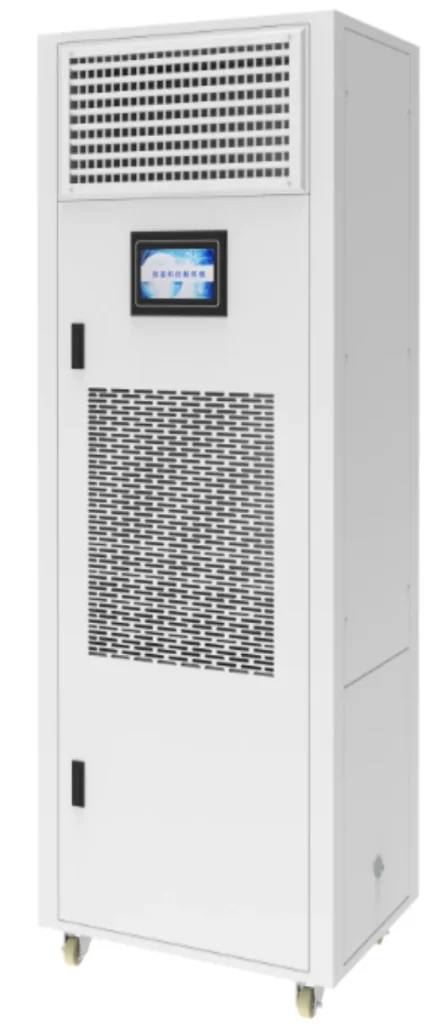

Intergrated dehumidification and humidification unit(bd)
2-Year Warranty
Fast Delivery
24/7 Support
About This Product
The Constant Humidity Control System is designed to maintain a stable and precise humidity level across a wide range of environments. By integrating both humidification and dehumidification functions into one system, it automatically balances indoor humidity to the desired level, regardless of external environmental fluctuations.
Equipped with a built-in intelligent humidity sensor, the system continuously monitors and adjusts humidity in real time, ensuring optimal conditions for sensitive processes and materials. It operates efficiently across various temperature ranges, making it suitable for both low-temperature storage areas and high-temperature industrial environments.
This system is an ideal solution for industries that require strict environmental control, helping to preserve product integrity, improve operational stability, and enhance overall efficiency.
|
Model |
YSHS80C-72BD |
YSHS158C-138BD |
YSHS240C-168BD |
|
|
Dehumidification Capacity (30°C / RH80%) |
80 L/day |
158 L/day |
240 L/day |
|
|
Humidifying Capacity |
72 L/day |
138 L/day |
168 L/day |
|
|
Power Supply |
220V/50HZ |
220V/50HZ |
220V/50HZ(380V/50Hz） |
|
|
Airflow Capacity |
500 m3/h |
1200 m3/h |
1800 m3/h |
|
|
Noise Level |
55 (dB(A)) |
62 (dB(A)) |
64 (dB(A)) |
|
|
Maximum Dehumidification Power |
1.2 Kw |
2.3 Kw |
4.25 Kw |
|
|
Humidification Power |
0.15 Kw |
0.3 Kw |
0.35 Kw |
|
|
Pre-filter |
Available |
Available |
Available |
|
|
Humidification Technology |
Evaporative Wet Film Humidification |
Evaporative Wet Film Humidification |
Evaporative Wet Film Humidification |
|
|
Control System |
Automatic Humidity Control System |
Automatic Humidity Control System |
Automatic Humidity Control System |
|
|
Drainage System |
Continuous Drainage (Drain Pipe Diameter 25 mm) |
Continuous Drainage (Drain Pipe Diameter 25 mm) |
Continuous Drainage (Drain Pipe Diameter 25 mm) |
|
|
Water Inlet Type |
Automatic Water Supply (Inlet Pipe DN15) |
Automatic Water Supply (Inlet Pipe DN15) |
Automatic Water Supply (Inlet Pipe DN15) |
|
|
Installation Method |
Floor-standing Type |
Floor-standing Type |
Floor-standing Type |
|
|
Operating Temperature Range |
5-38℃ |
5-38℃ |
5-38℃ |
|
|
Recommended Coverage Area |
70-100㎡ |
90-150㎡ |
120-260㎡ |
|
|
Unit Dimensions |
650*480*1750 mm |
650*480*1750 mm |
650*480*1750 mm |
|
|
Net Weight |
65 Kg |
120 Kg |
150 Kg |
|
|
Remark |
Optional RS485 Communication Touchscreen –$150 |
|||
|
Optional Photo-hydrogen Ion System –$75 |
||||
|
FOB |
$779 |
$939 |
$1,100 |
|
Frequently Asked Questions
We collect a lot of FAQs from our real clients and please check out our FAQ page. Also, feel free to chat with us via LiveChat, phone call, email, or just simply drop us a line below:
30% to 50% for most indoor spaces. Industrial settings may require specific humidity levels. Our machine adjustable humidity range is 10%-90%.
Dehumidifiers are ideal for a wide range of industries, including pharmaceuticals, electronics, food processing, archives, data centers, museums, and industrial manufacturing environments.
A dehumidifier works by drawing in air, removing excess moisture using a cooling or desiccant system, and then releasing dry air back into the room. This process helps reduce humidity levels, preventing mold, mildew, and moisture damage.
We offer a full range of solutions, including refrigeration dehumidifiers, rotary wheel (desiccant) dehumidifiers, low-temperature models, high-temperature models, and customized climate control systems.
Yes, we support OEM & ODM services. We can customize capacity, voltage, appearance, and control systems based on your project requirements.
Our MOQ is flexible depending on the product type. Sample orders are available for testing before bulk purchase.
Standard models are typically delivered within 7–15 days. Customized orders may require additional time depending on specifications.
Our products can comply with international standards such as CE and other certifications required by your market.
Simply provide your application details (area, temperature, humidity level, etc.), and our team will recommend the most suitable solution.
