total heat recovery fresh air anti-smog dehumidification system
2-Year Warranty
Fast Delivery
24/7 Support
About This Product

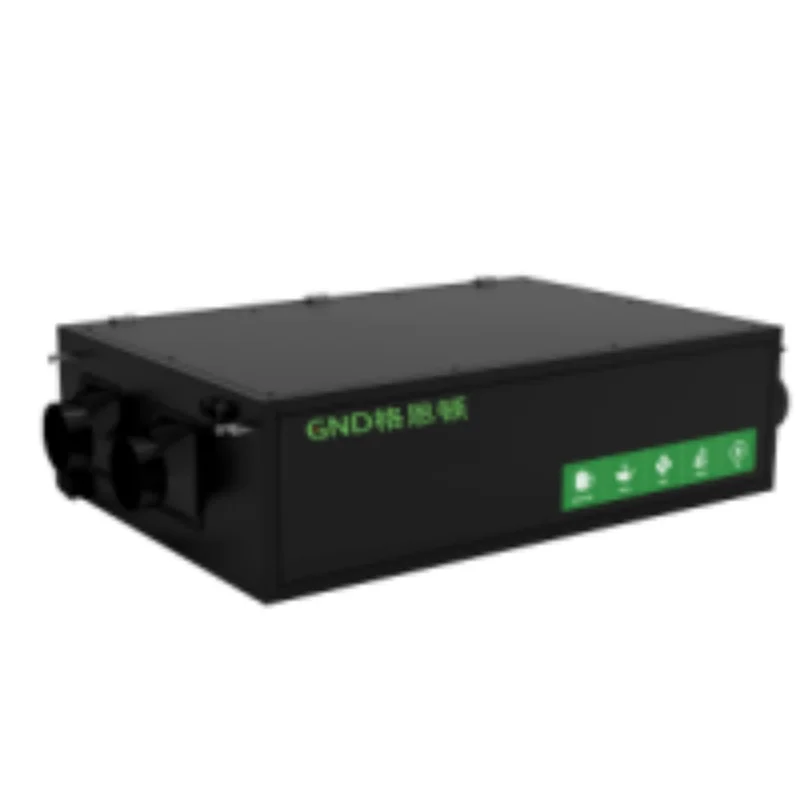

The Air-YS series total heat recovery fresh air anti-smog dehumidification system is a high-end integrated air solution combining fresh air ventilation, dehumidification, air purification, and energy recovery technology.
Equipped with a total heat exchanger, the system recovers both sensible heat and latent heat from exhaust air, significantly reducing energy loss while maintaining indoor comfort. It continuously introduces purified fresh air, removes excess humidity, and filters pollutants such as PM2.5, formaldehyde, and VOCs.
This system ensures a constant supply of clean, fresh, and comfortable air, making it ideal for modern residential and commercial environments with high indoor air quality requirements.
|
M odel |
YSC-30L |
YSC-40L |
YSC-60L |
YSC-80L |
|
Power Supply |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
|
Dehumidification Capacity |
30L/D |
40L/D |
60L/D |
80L/D |
|
Dehumidification Test Conditions |
T=30℃，RH=80% |
T=30℃，RH=80% |
T=30℃，RH=80% |
T=30℃，RH=80% |
|
Maximum Power |
600W |
650W |
1020W |
1250W |
|
Maximum Current |
2.7A |
2.9A |
4.6A |
5.7A |
|
Fresh Air Intake Volume |
280m3/h |
380m3/h |
500m3/h |
600m3/h |
|
Exhaust Airflow Volume |
170m3/h |
220m3/h |
300m3/h |
360m3/h |
|
External Static Pressure |
50Pa |
50Pa |
80Pa |
80Pa |
|
Noise Level |
35DB |
38DB |
40DB |
42DB |
|
Heat Recovery Efficiency |
73-78% |
73-78% |
73-78% |
73-78% |
|
Outdoor Fresh Air Inlet |
Φ150mm |
Φ150mm |
Φ150mm |
Φ150mm |
|
Outdoor Exhaust Air Outlet |
Φ150mm |
Φ150mm |
Φ150mm |
Φ150mm |
|
Indoor Supply Air Outlet |
Φ150mm |
Φ150mm |
Φ150mm |
Φ150mm |
|
Indoor Return Air Inlet |
Φ150mm |
Φ150mm |
Φ150mm |
Φ150mm |
|
Fresh Air Filtration System |
Pre-filter + Medium Filter + HEPA Filter |
Pre-filter + Medium Filter + HEPA Filter |
Pre-filter + Medium Filter + HEPA Filter |
Pre-filter + Medium Filter + HEPA Filter |
|
Air Purification System |
Negative Ion + UV Sterilization Lamp |
Negative Ion + UV Sterilization Lamp |
Negative Ion + UV Sterilization Lamp |
Negative Ion + UV Sterilization Lamp |
|
Operating Temperature Range |
5-38℃ |
5-38℃ |
5-38℃ |
5-38℃ |
|
IP Rating |
I PX4 |
IPX4 |
IPX4 |
IPX4 |
|
Drainage System |
Intelligent Automatic Control System |
Intelligent Automatic Control System |
Intelligent Automatic Control System |
Intelligent Automatic Control System |
|
Control System |
Intelligent Automatic Control System |
Intelligent Automatic Control System |
Intelligent Automatic Control System |
Intelligent Automatic Control System |
|
Compressor |
Panasonic Compressor |
Panasonic Compressor |
Panasonic Compressor |
Panasonic Compressor |
|
Refrigerant Type |
R134a |
R134a |
R410A |
R410A |
|
Unit Dimensions |
1060*562*250mm |
1060*562*250mm |
1178*637*312mm |
1178*637*312mm |
|
Recommended Coverage Area |
10-40m2 |
40-60m2 |
60-80m2 |
80-100m2 |
|
Price |
$969 |
$1,109 |
$1,299 |
$1,479 |
Frequently Asked Questions
We collect a lot of FAQs from our real clients and please check out our FAQ page. Also, feel free to chat with us via LiveChat, phone call, email, or just simply drop us a line below:
30% to 50% for most indoor spaces. Industrial settings may require specific humidity levels. Our machine adjustable humidity range is 10%-90%.
Dehumidifiers are ideal for a wide range of industries, including pharmaceuticals, electronics, food processing, archives, data centers, museums, and industrial manufacturing environments.
A dehumidifier works by drawing in air, removing excess moisture using a cooling or desiccant system, and then releasing dry air back into the room. This process helps reduce humidity levels, preventing mold, mildew, and moisture damage.
We offer a full range of solutions, including refrigeration dehumidifiers, rotary wheel (desiccant) dehumidifiers, low-temperature models, high-temperature models, and customized climate control systems.
Yes, we support OEM & ODM services. We can customize capacity, voltage, appearance, and control systems based on your project requirements.
Our MOQ is flexible depending on the product type. Sample orders are available for testing before bulk purchase.
Standard models are typically delivered within 7–15 days. Customized orders may require additional time depending on specifications.
Our products can comply with international standards such as CE and other certifications required by your market.
Simply provide your application details (area, temperature, humidity level, etc.), and our team will recommend the most suitable solution.
