About This Product

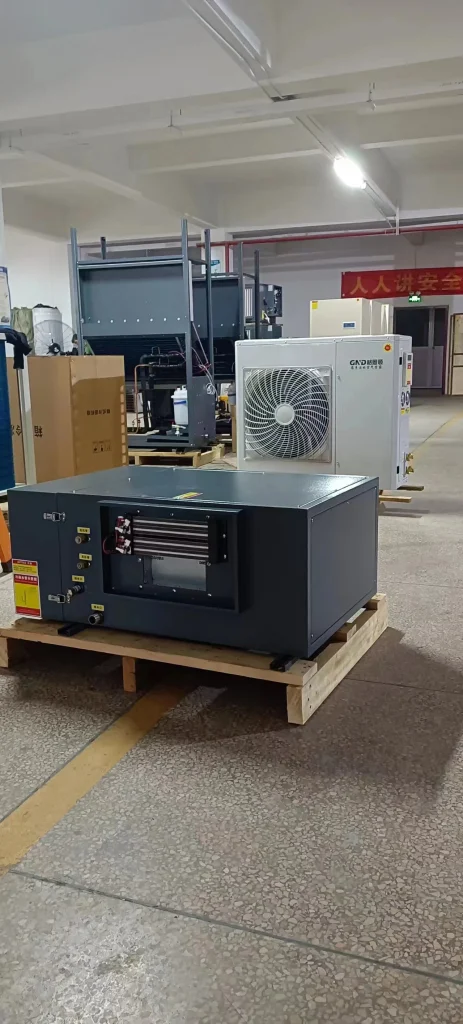

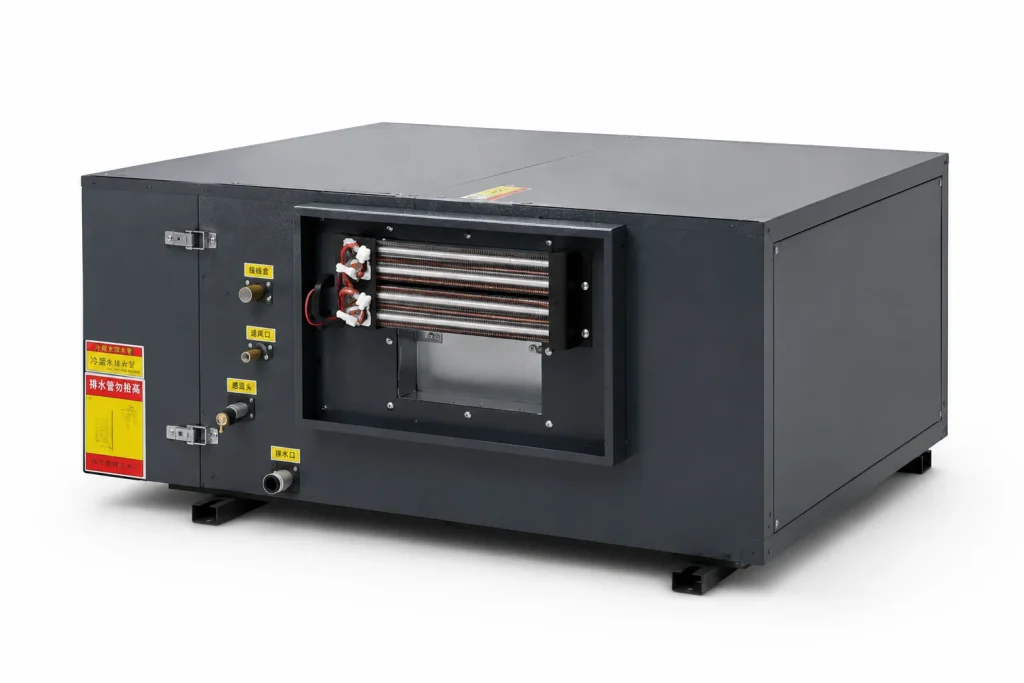

The ceiling-mounted temperature and humidity control system for wine cellars is specially designed to maintain optimal conditions for wine storage, ensuring precise and stable temperature and humidity levels in wine cellars, cellar rooms, and aging areas. This system integrates dehumidification and humidification functions, offering full control of the cellar environment to preserve the quality and integrity of wine over time.
Built with advanced sensor technology and a high-efficiency control system, this unit automatically adjusts temperature and humidity, maintaining the ideal range of 12–16°C (temperature) and 60–70% RH (humidity) for wine storage. The compact ceiling-mounted design allows for discrete installation, ensuring an aesthetically pleasing, space-saving solution without compromising performance.
|
Unit Features |
Model |
YSHWHS-2P |
YSHWHS-3P |
|
|
Power |
2P |
3P |
||
|
Cooling Capacity |
kW |
5.5 kW |
8.5KW |
|
|
Heating Capacity |
kW |
3 kW |
4.5KW |
|
|
Circulating Airflow |
m3/h |
1200 m3/h |
1800 m3/h |
|
|
Unit Noise |
dB(A) |
≤50 dB(A) |
≤65 dB(A) |
|
|
Temperature Range |
12-30℃±2℃ |
12-30℃±2℃ |
||
|
Humidity Range |
10-100%±5% |
10-100%±5% |
||
|
Power Supply |
220V-50HZ-1P（Single-phase） |
380V-50HZ-3P（Three-phase） |
||
|
Installed Power |
kW |
5.3 kW |
7 kW |
|
|
Cooling Power |
kW |
1.8 kW |
2.6 kW |
|
|
Refrigeration System |
Refrigerant Type |
R22 |
R22 |
|
|
Expansion Device |
Capillary Tube / Thermal Expansion Valve (TXV) |
|||
|
Compressor Brand |
Panasonic / Hitachi Compressor |
|||
|
Compressor |
Compressor Type |
Rotary / Fully Hermetic Scroll Compressor |
||
|
Evaporator Type |
Inner-grooved Copper Tube with Louvered Hydrophilic Aluminum Fins |
|||
|
Condenser Type |
Inner-grooved Copper Tube with Louvered Hydrophilic Aluminum Fins |
|||
|
Heating |
Heating Type |
PTC Electric Heating System |
||
|
Heating Power |
kW |
3 kW |
4.5 kW |
|
|
Humidifier |
Humidification Method |
Electrode Humidifier |
||
|
Humidifying Capacity |
kg/h |
3 kW |
6 kW |
|
|
Water Inlet Size / Drain Outlet Size |
1/2″ and 3/4″ Connections |
|||
|
Air Filter |
Plate-type G5 Pre-filter |
|||
|
Control Method |
7-inch Touchscreen (Optional) |
|||
|
Unit Weight |
Indoor Unit Weight |
Approximate 90 kg |
Approximate 120 Kg |
|
|
Return Air Inlet Size / Supply Air Outlet Size |
550*230mm，400*250mm |
550*230mm，400*250mm |
||
|
Indoor Unit Dimensions / Outdoor Unit Dimensions |
890*730*375mm or 960*385*860mm |
890*730*375mm or 960*385*860mm |
||
|
Liquid Line |
mm |
9.52 mm |
9.52 mm |
|
|
Gas Line |
mm |
12.7 mm |
15.88 mm |
|
Frequently Asked Questions
We collect a lot of FAQs from our real clients and please check out our FAQ page. Also, feel free to chat with us via LiveChat, phone call, email, or just simply drop us a line below:
30% to 50% for most indoor spaces. Industrial settings may require specific humidity levels. Our machine adjustable humidity range is 10%-90%.
Dehumidifiers are ideal for a wide range of industries, including pharmaceuticals, electronics, food processing, archives, data centers, museums, and industrial manufacturing environments.
A dehumidifier works by drawing in air, removing excess moisture using a cooling or desiccant system, and then releasing dry air back into the room. This process helps reduce humidity levels, preventing mold, mildew, and moisture damage.
We offer a full range of solutions, including refrigeration dehumidifiers, rotary wheel (desiccant) dehumidifiers, low-temperature models, high-temperature models, and customized climate control systems.
Yes, we support OEM & ODM services. We can customize capacity, voltage, appearance, and control systems based on your project requirements.
Our MOQ is flexible depending on the product type. Sample orders are available for testing before bulk purchase.
Standard models are typically delivered within 15–30 days. Customized orders may require additional time depending on specifications.
Our products can comply with international standards such as CE and other certifications required by your market.
Simply provide your application details (area, temperature, humidity level, etc.), and our team will recommend the most suitable solution.
